螺旋壓榨破碎機

Screw press crusher

一、螺旋壓榨破碎機技術特征：

螺旋壓榨破碎機顧名思義就是，利用強制擠壓技術將木片、竹片等原料利用螺旋壓縮原理強制擠壓，至原料結構破裂，將植物纖維之間的水份、糖份、植物膠等成分通過強制壓榨擠出來一部分。擠出木材、竹子植物內的汁液后，將顯著降低蒸煮制漿過程中溶解的木質素，縮短蒸煮軟化時間，降低溶解液的處理成本...壓榨脫水后的原料中空、結構疏松，有利于藥液的吸收，縮短蒸煮時間。擠壓后的纖維對藥液吸收快，藥液容易進入纖維內，使原料中的木質素快速降解。

一、Overview of screw press crusher：

As the name implies, the screw press crusher uses the forced extrusion technology to forcibly squeeze raw materials such as wood chips and bamboo chips by the principle of screw compression until the structure of raw materials is broken, and some components such as water, sugar and plant gum between plant fibers are squeezed out by forced extrusion，After squeezing out the juice from wood and bamboo plants,

 the lignin dissolved in the process of cooking and pulping will be significantly reduced, shortening the cooking softening time and reducing the treatment cost of the dissolved solution.。The squeezed and dehydrated raw materials are hollow and loose in structure, which is beneficial to the absorption of liquid medicine and shortening cooking time。The squeezed fiber absorbs the liquid medicine quickly, and the liquid medicine can easily enter the fiber, so that the lignin in the raw material is degraded quickly。

二、用途二：

低溫浸泡的竹片、木片經本設備壓榨脫水后含水率低于50%，達到了壓榨脫水的極限，方便了運輸，降低了運輸成本。擠壓的另一個優點是保護纖維，因?yàn)橹褡印㈣駱洹顦涞戎参锷L速度快，纖維短。為了保護纖維的長度和強度，打漿和打漿前的備料和前處理是非常重要的。

The moisture content of bamboo chips and wood chips soaked at low temperature after being squeezed and dehydrated by this equipment is lower than 50%, which has reached the limit of squeezing and dehydration, which is convenient for transportation and reduces transportation cost。Another advantage of extrusion is to protect fibers, because bamboo, eucalyptus, poplar and other plants grow fast and have short fibers. In order to protect the fiber length and strength, it is very important to prepare materials and pretreatment before beating and refining

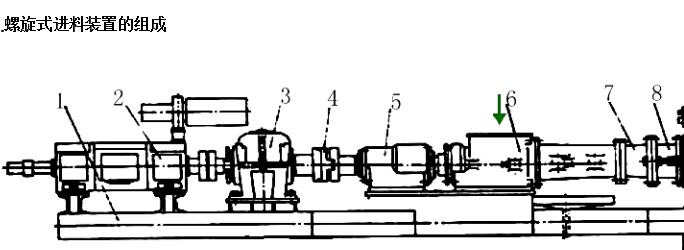

二、擠壓疏解機裝置組成：

   1、基礎板；2、直流電機；3、減速器；4、硬連接器；5、軸承體；6、進料口

   7、擠壓疏解區；8、出料端口      1. Foundation plate;  2. DC motor;  3. reducer;  4. Hard connector;

         5. Bearing body;  6. Feed inlet  7. Extrusion crushing area;  8. Discharge throat

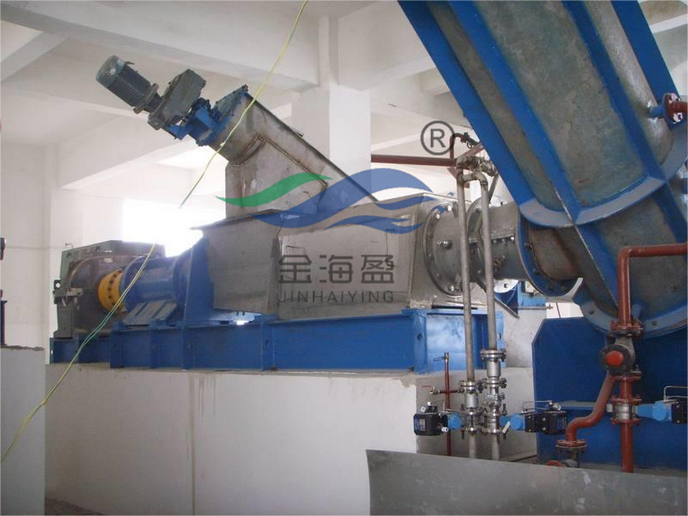

三、設備實物：
