臥式雙渦流水力碎漿機Horizontal double vortex hydraulic pulper

一．雙渦流水力碎漿機簡介：

JHSS型雙渦流水力碎漿機，是根據水力旋渦原理設計而成，比單渦流碎漿機節電30%以上。雙渦流水力碎漿機采用雙套傳動，雙套篩板和葉輪，加大了水力渦流剪切力和沖擊力，促使廢紙在葉輪高速旋轉時產生的水力剪切作用下，快速碎解水化。設備在運轉過程中廢紙總是處在高速逆流中，從而使紙張和紙張、纖維與纖維之間相互磨擦，結合葉輪的剪切和水力的沖擊與浸泡作用加快了紙料的分解，提高了產量，降低了電耗，提高了生產效率。

本機設計新穎合理，操作簡單，是中小造紙廠家倍受青睞的產品。

一、概述

   JHSS Double vortex hydraulic pulper is designed with reference to the principle of hydraulic shear vortex, which saves more than 30% electricity than single vortex hydraulic pulper.。The double eddy current hydraulic pulping machine adopts two sets of transmission systems, two sets of sieve plates and two sets of pulping impellers, which are installed in parallel and at different speeds in the same direction, which increases the hydraulic eddy current shear force and impact force.，Promote waste paper to decompose and hydrate rapidly under the action of hydraulic shear force generated by high-speed rotation of impeller.。During the operation of the equipment, the waste paper is always in a high-speed countercurrent, so that the friction between the paper and the paper and between the fiber and the fiber, combined with impeller beating and hydraulic impact and soaking, speeds up the decomposition speed of the paper and increases the output. The power consumption is reduced and the production efficiency is improved。

This machine is a popular product of small and medium-sized paper manufacturers because of its novel and reasonable design and simple operation.

二．設備規格及參數Equipment specifications and parameters：

注：篩孔直徑可根據用戶需要制作。Note: the diameter of sieve hole can be made according to the needs of users.

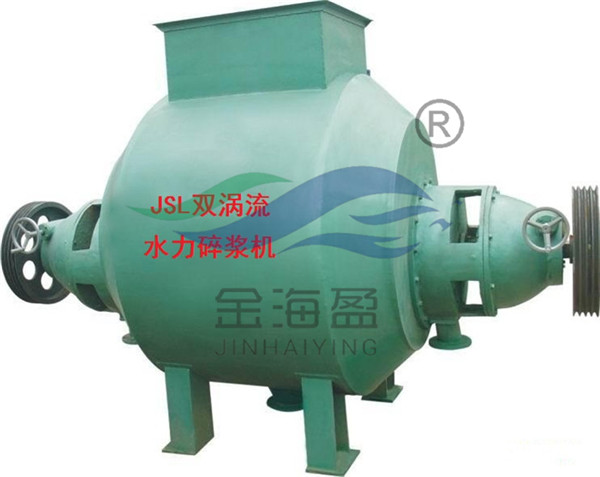

三、設備實物照片
